FNIRSI SG-003A 0-24V Adjustable Current Voltage Simulator Transmitte - FNIRSI Oscilloscope Official Website

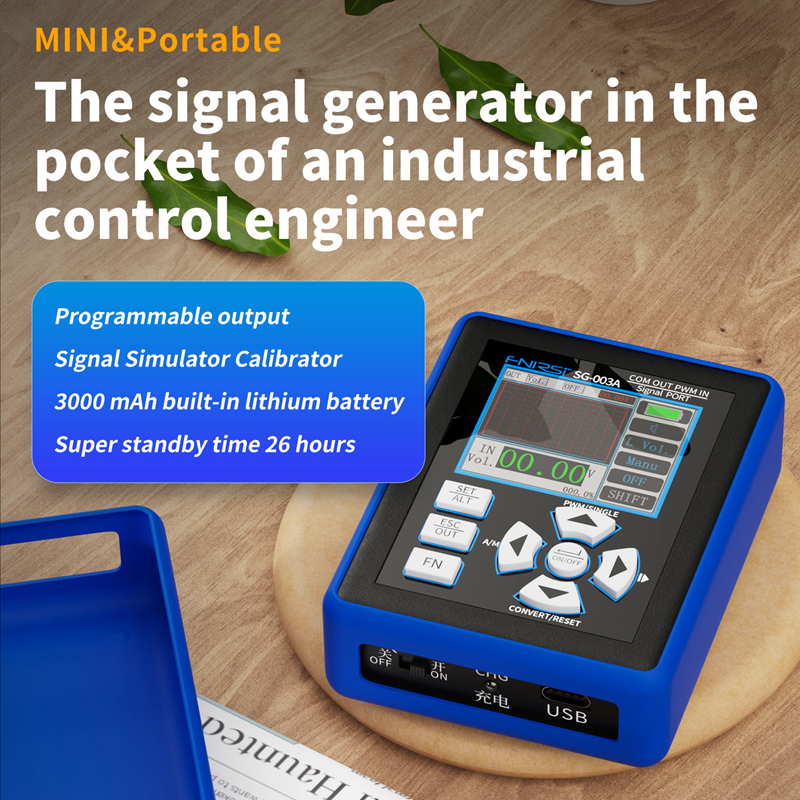

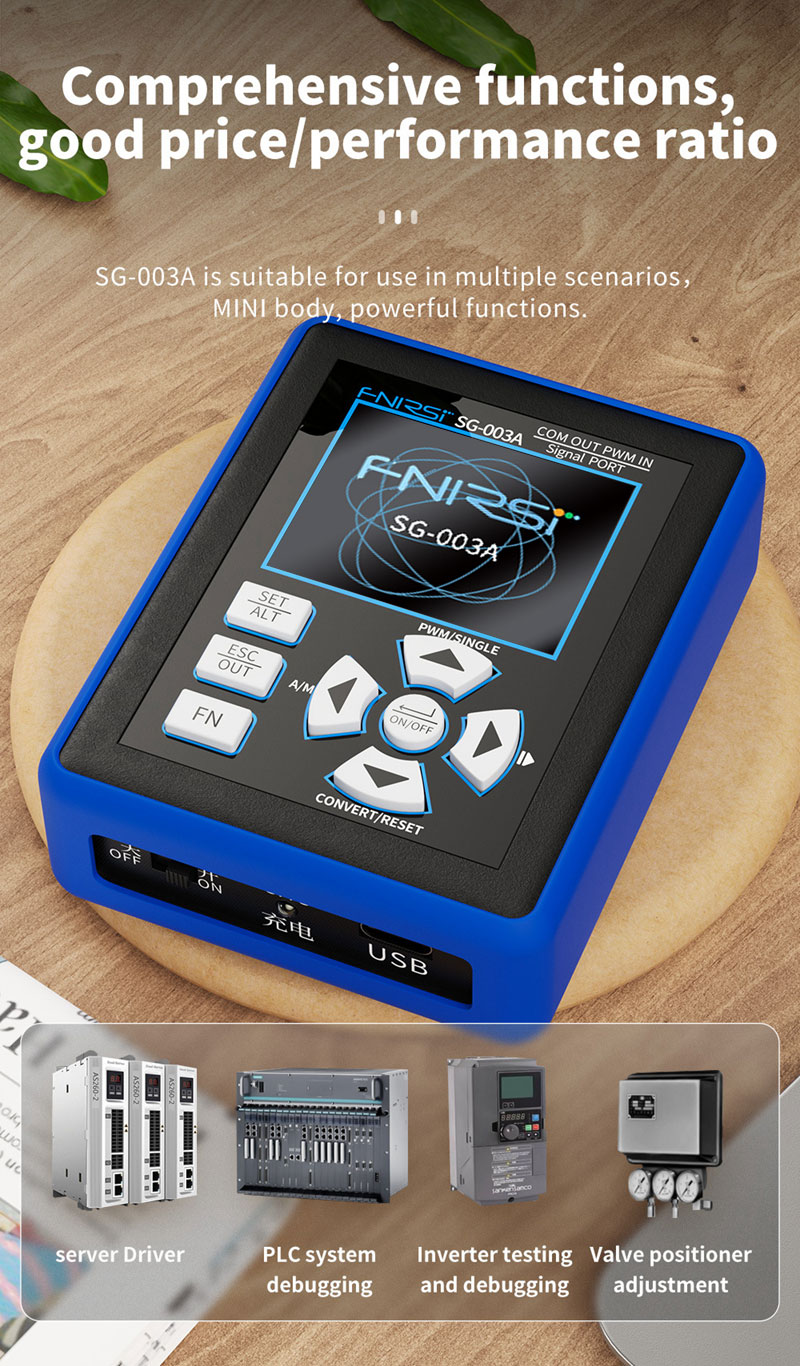

For example: the current signal of 4~20mA corresponds to 0~100, that is 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100. This range can be modified by parameters.P rogramming Output : It has the output function of automatically and continuously changing the size according to the setting parameters, and can choose three modes: monotonous rise, monotonous fall and cycle.R eal-time Curve : The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set. It can also automatically adjust the display curve within the range of the maximum and minimum values within a certain period of time.B Its working time can reach up to 26 hours which provides you with a long working time.M irmware Upgrade : USB emulated U disk for firmware upgrade. Working Hours: using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output) Standby Hours: 26 hours Plug the meter into the PC,and turn it on. Wait for the PC to recognize the USB drive named Bootloader. The limit voltage of the input terminal can't be greater than 30Vpp, otherwise the over limit will damage the equipment. Dont use the instrument in a flammable and explosive environment Used batteries for instrument replacement and discarded instruments cannot be disposed of with household waste. FNIRSI Design Every Detail Carefully The Fnirsi Sg-003a Signal Generator Has Extremely Wide Range of Applications Technical Parameters Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750Ω;Precision:±(0.1%+0.005) Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005) Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005) 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005) Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω;Precision:±(0.1%+0.05) Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2MΩ;Precision:±(0.1%+0.05) 【Physical & Engineering】Signals are displayed as physical or engineering (ie pure quantity) values. For example: the current signal of 4-20 mA corresponds to 0-100, that is 4 mA corresponds to 0, 12 mA corresponds to 50, and 20 mA corresponds to 100 The current-voltage analog simulator can also adjust the curve within the range of the max and min values 【Signal Conversion】FNIRSI SG-003A signal generator can convert input signals into an output signal, and converted into different physical quantities. The input signal is converted into a current signal, and the input range is 0-1000 hz into 4-20 mA 【Multiple Port Signal Generator】The Blue (IN-) is an alternate and it is also an input port that can be switched to a 24 V test power supply. Red(OUT) and black(COM) form an output port. Yellow(IN+) and Blue(IN-) form the input port
